Q Acoustics E60 In-Wall Audio System

Q Acoustics E60 In-Wall Bluetooth Ceiling Speaker System

Upgrade your home audio with a sleek, all-in-one solution designed for modern living. The Q Acoustics E60 combines powerful, room-filling sound with a discreet in-wall control panel and ceiling speakers, giving you high-quality audio without clutter or complexity.

Perfect for bathrooms, kitchens and living spaces, the E60 delivers effortless streaming, simple control and a clean, built-in finish.

All-In-One Audio, Designed for Modern Homes

The E60 system brings everything together in one compact setup. With a built-in amplifier and wall-mounted control panel, you can power your ceiling speakers directly without the need for external equipment or bulky Hi-Fi systems.

Simple Streaming with Bluetooth

Stream your favourite music, radio or podcasts directly from your phone or tablet via Bluetooth. With a stable, modern connection, you can enjoy seamless playback without dropouts or interruptions.

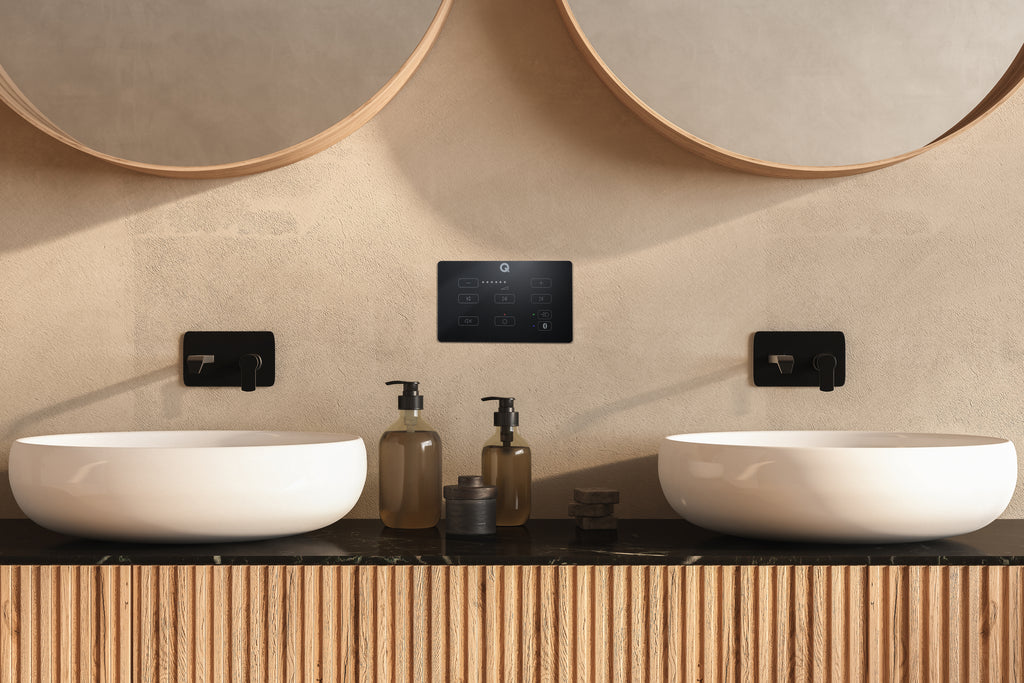

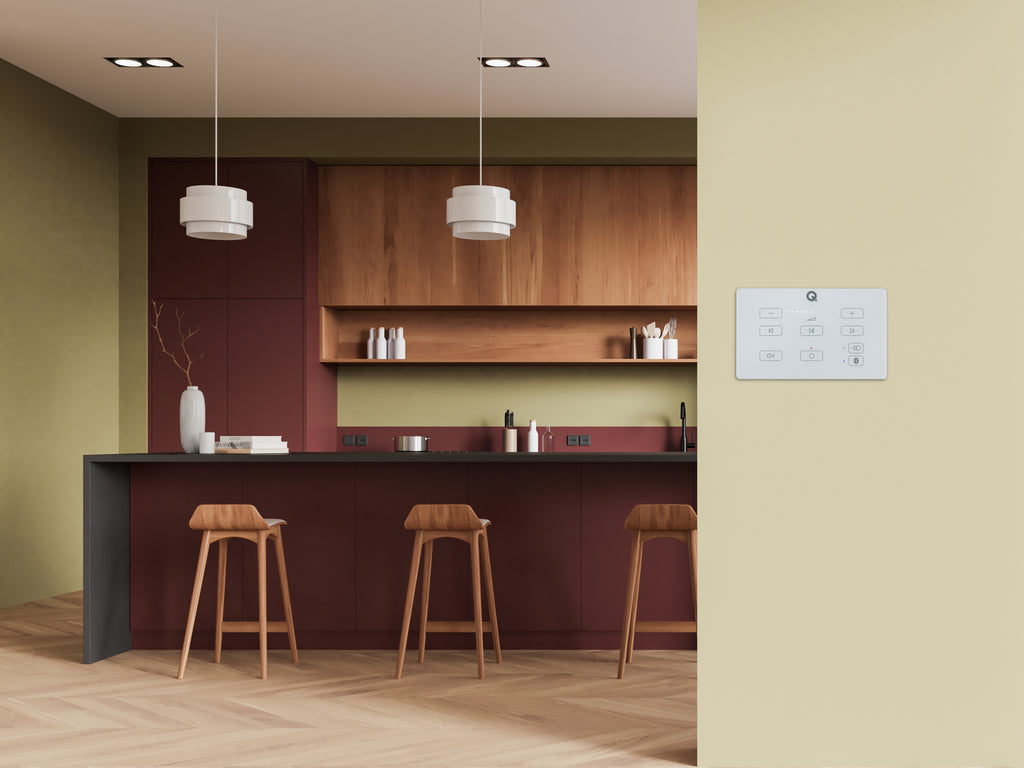

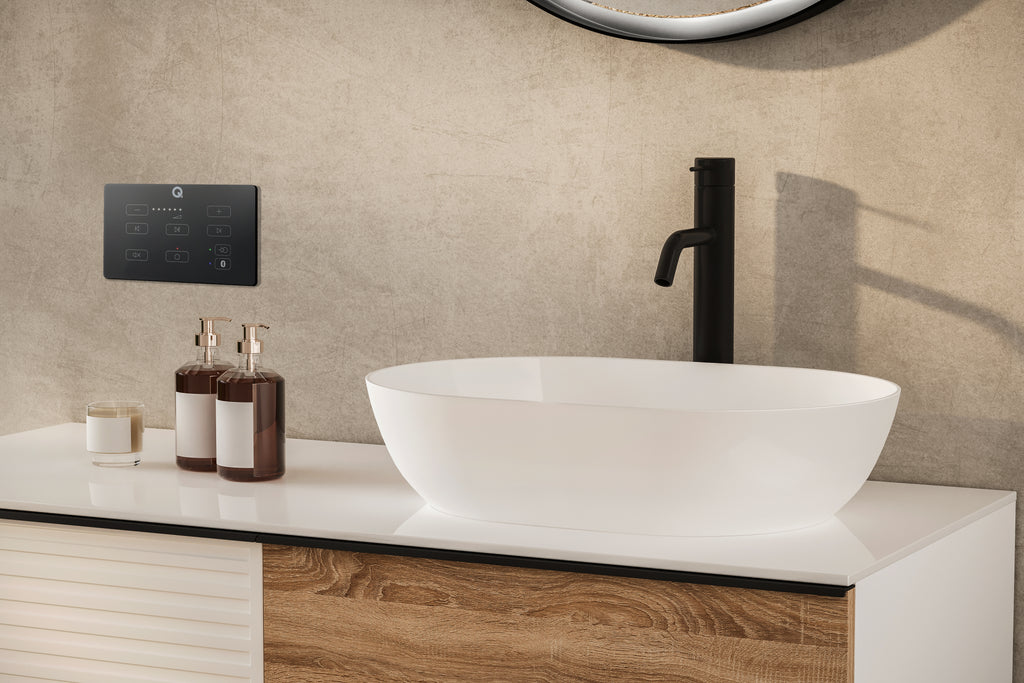

Built for Bathrooms and Kitchens

Designed with everyday living in mind, the E60 features a splash-proof (IP54-rated) wall panel, making it ideal for use in humid environments. Whether you're in the shower or cooking, control your music with confidence.

Discreet, Minimalist Design

The flush-mounted wall panel and low-profile ceiling speakers create a clean, modern look that blends seamlessly into any room. No visible wires, no bulky equipment — just great sound.

Flexible and Expandable

The E60 gives you more flexibility than traditional systems. With support for additional speakers and dual mono mode, it’s perfect for both smaller rooms and larger open-plan spaces.

More Than Just Bluetooth

With optical input for TVs and a line-out for subwoofers or additional amplification, the E60 goes beyond basic background audio. It’s a versatile solution for both music and everyday entertainment.

In The Box

• 1 x E60 in-wall audio system keypad
• 1 x Wall unit mounting frame
• 2 x M3.5 x 40mm screws
• 1 x 1.0mm wall gasket



Specification

Wireless

• Bluetooth
  • BT 5.0, A2DP

AUX

• Optical TOSLINK
  • Resolution: 16bit 48kHz

Speaker Outputs

• Left & Right
• Stereo or dual mono

Analogue Line

• 3.5mm stereo
  • Modes: Fixed or variable
  • Max level: 670mV

Amplifier Type

• Class D
  • Continuous power: 2 x 25W @ 6Ω
  • THD: 0.07% @ 1W / 0.2% @ rated power
  • SNR: >75dB @ rated power
  • Frequency response: 20Hz - 20kHz ± 1dB

Ratings

• E60 wall panel: IP54

Control

• Touch sensitive buttons: x 9
• BT AVRCP: v1.6 (play, pause, skip, track)

Power Supply

• Input: 100 - 240V AC 50/60 Hz
• Output: 22V DC 1.5amps
• Dimensions (HxWxD): 30mm x 50mm x 115mm

Power Consumption

• Typical: 10W
• Standby: <2W

Wall Panel

• Net weight: 1.3kg
• Dimensions (HxWxD): 91mm x 151mm x 33mm
• Operating ambient temperature: Max. 40 ºC

Speaker Cable

• Gauge: 19 AWG
• Lengths: 2 x 7m

DC Extension

• Gauge: 16 AWG
• Lengths: 5m
• Connectors
  • 5.5mm x 2.5mm DC male
  • 5.5mm x 2.5mm DC female
