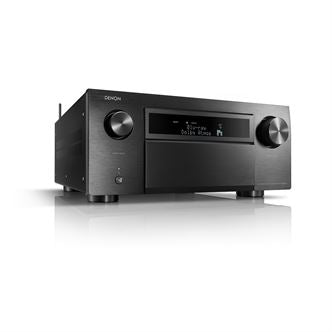

Featuring Denon’s most advanced and sophisticated power amplifier design, the AVC-X8500HA delivers high-power performance at 210 watts per channel to ensure a dynamic and precise entertainment experience. Low impedance drivers provide operational stability for a wide range of speakers and create a balanced, tonal sound.
The Latest in Video Specs
The AVC-X8500HA offers an advanced HDMI section (8 in/3 out) with a dedicated 8K input that supports 8K/60Hz or 4K/120Hz video pass-through. All HDMI inputs feature 4:4:4 Pure Color sub sampling, HDR10, Dolby Vision, Hybrid Log-Gamma (HLG) and BT.2020 pass-through support for exceptional colour, clarity, and contrast. Enjoy 8K upscaling.
| DTS HD Master |
Yes |
|
DTS:X: |
Yes |
|
DTS Neural: X: |
Yes |
|
Dolby TrueHD: |
Yes |
|
Dolby Atmos: |
Yes |
Multichannel Surround
|
Dolby ProLogic II: |
No |
|
Dolby Surround: |
No |
|
Multichannel Stereo: |
Yes |
|
Max Number of Processing (Preamp) Channels: |
13.2 |
|
Mono Block Power Amp Construction: |
Yes (L/R separated) |
|
Discrete Power Amplifier: |
13 |
|
D.D.S.C. HD Digital: |
Yes (32-bit) |
|
Pure Direct: |
Yes |
|
High Grade Audio Components: |
Yes |
|
Gold Plated RCA Terminals: |
Yes |
Sound Enhancements
|
Clock Jitter Reducer: |
Yes |
|
Alpha Processing: |
AL32 Processing Multichannel |
|
Audyssey: |
MultEQ XT32 |
|
Audyssey Dynamic EQ : |
Yes |
|
Dynamic Volume: |
Yes |
|
Audyssey LFC: |
Yes |
|
Compressed Audio Restorer: |
Yes |
|
HEOS Multiroom and Streaming : |
Yes |
|
Network Audio Streaming: |
Yes |
|
Lossy Formats: MP3 / WMA / AAC: |
Yes
Yes
Yes |
|
Lossless Formats: FLAC / ALAC / WAV: |
Yes, Yes, Yes |
|
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 96/24: |
Yes, Yes, Yes |
|
DSD Audio Streaming: |
up to DSD5.6 |
|
FLAC HD 192/24 |
Yes |
Network
|
WAV 192/24: |
Yes |
|
ALAC 192/24: |
Yes |
|
Gapless Playback |
Yes, FLAC, WAV, AIFF, ALAC, DSD |
|
AirPlay Audio Streaming: |
Yes |
|
Spotify Connect* / Tidal* / Deezer* / others *: |
Yes, Yes, Yes, Yes |
|
Ethernet Ports |
Yes |
|
Wi-Fi: |
Yes |
|
Bluetooth: |
Yes |
|
Internet Radio: |
TuneIn |
|
HDMI Inputs: |
7 Back, 1 Front |
|
HDCP 2.2 support: |
Yes |
|
HDMI Outputs: Main / Zone |
2 / 1 |
|
Video Conversion Analog -> HDMI: |
Yes |
|
HDMI max Resolution (8k / 4k): |
8k/60 - 4k/120** |
|
HDMI to HDMI Scaling: |
up to 8K 60/50 |
|
GUI Overlay on HDMI: |
Yes |
HDMI
|
4K Signal Pass-through / Scaling / GUI Overlay: |
Yes, Yes, Yes |
|
HDMI pass-though in standby mode: |
Yes |
|
|
Picture Adjust: |
Yes |
|
Noise Reduction: |
Yes |
|
CEC: |
Yes |
|
Audio Return Channel: |
Yes |
|
DSD Audio Capability: |
Yes |
|
Audio Return Channel: |
Yes |
|
Auto LipSync: |
Yes |
|
HEOS Multi-room and Streaming : |
Yes |
|
Multi-Room Zones: |
3 |
|
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: |
Yes(2ch), Yes (2ch), Yes, Yes |
Multi-room / Ci
|
Zone Audio Output: Speaker / Preout: |
Yes, Yes |
|
Zone HDMI Output from HDMI Source: |
Yes |
|
IP Control / RS232 Control / Web Control / App Control: |
Yes, Yes, No, Yes |
|
Remote In / Out: |
Yes, Yes |
|
DC Trigger Output: |
2 |
|
TV Sound Grouping: |
Yes |
|
Composite In / Out: |
4 / 2 |
|
Component In / Out: |
3 / 1 |
|
HDMI In / Out: |
7+1 / 3 |
|
Multi-room Video Out: Video / HDMI: |
Yes, Yes |
|
Analogue In / Out: |
6 + 1, 0 |
|
Phono (MM) In: |
Yes |
|
Digital In: Optical / Coaxial: |
2, 2 |
|
Multi-room Out: Analog / Digital: |
2 / 0 |
|
Multichannel Preout: |
Yes (15.2) |
Inputs / Outputs
|
Subwoofer Out: |
2 (independent) |
|
7.1 Multichannel Input: |
No |
|
Speaker Terminal:: |
Gold Plated Screw |
|
Number of Speaker Terminals: |
15 |
|
Speaker A/B / Bi-amp Drive / Multi-Room Speaker: |
assignable |
|
Speaker A / B: |
assignable |
|
Bi-amp Drive: |
assignable |
|
Multi-Room Speaker Terminal: |
assignable |
|
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: |
Yes, Yes, No, Yes, Yes |
|
USB Audio / Made for iPod / Made for iPhone: |
Yes, Airplay, Airplay |
|
FM Tuner with RDS: |
Yes |
|
Number of power amps : |
13 |
|
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): |
TBC |
Specifications
|
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) |
150 |
|
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): |
190 W |
|
Power Output (6 ohm, 1 kHz, 1% 1ch Drive): |
210 W |
|
Metal Front Panel: |
Yes |
|
System Remote Control: |
RC-1221 |
|
Power Consumption in W: |
900 W |
General
|
Standby Consumption in W: |
0.1 W |
|
CEC Standby Consumption in W: |
0.5W |
|
Network Control On Consumption in W: |
2.9 - 3.7W |
|
Dimensions (W x D x H): |
434 x 482 x 195 mm |
|
Dimensions Antenna Vertical (W x D x H): |
434 x 482 x 259 mm |
|
Weight in kg: |
23.3 Kg |
